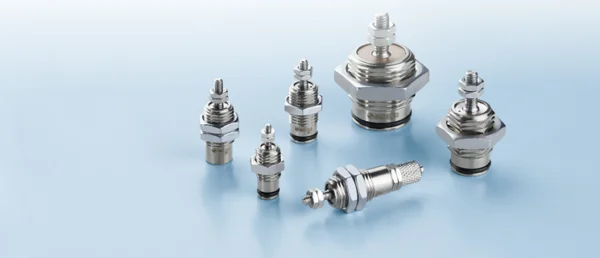

Pin Cylinder CJP

Pin Cylinder CJP

Rp195,200

・A short-stroke miniature cylinder with a shorter overall length
The installation space can be significantly reduced.
Thus, the machine can be made more compact.

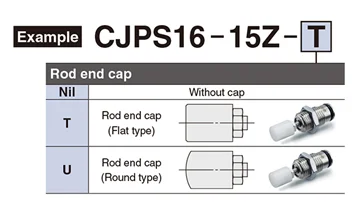

・Rod end cap can now be ordered with the cylinder.

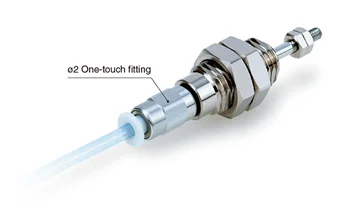

・One-touch fitting can be connected. (Panel mount type)
・Applicable for the change of the rod end shape (-XA□) (Simple specials)
・16 mm bore size is now available. (Changed from the existing product: 15 mm)
Specifications and dimensions are the same as the existing product.


  • Description

    Description

    Type Series Action Bore size (mm)
    Standard CJPB-Z Single acting (Panel mount) 4,6,10,15
    Standard CJPS-Z Single acting (Embedded) 4,6,10,15
  • Additional information

    Additional information

    Weight 1 kg
    Dimensions 1000 × 1000 × 1000 cm
