Elbow Type/Universal Type/Push-lock Type AS

Elbow Type/Universal Type/Push-lock Type AS

Rp866,750

・Easy to lock push-lock type
・Larger knob
・Improved tube insertion/removal
Insertion force: Max. 30% (8 N) reduction
Removal force: Max. 20% (5 N) reduction*
* Tube removal strength is ensured to be equivalent to the previous model.
・Electroless nickel plated type is standard.
・360° swivel piping is possible. (Universal type)
・Available with a restrictor (Made to order: -X214, -X21)
・Large flow type (-X778)


  • Description

    Description

    Type Series Port size
    on the
    cylinder side
    Applicable tubing O.D.
    Metric size
    Applicable tubing O.D.
    Inch size
    Elbow type AS12□1F to 42□1F M5 x 0.8
    10-32UNF
    R, NPT, G 1/8 to 1/2
    φ2 to φ16 φ1/8” to φ1/2”
    Universal type AS13□1F to 43□1F M5 x 0.8
    10-32UNF
    R, NPT, G 1/8 to 1/2
    φ3.2 to φ12 φ1/8” to φ1/2”

    Features

    ■Reduces labor time!

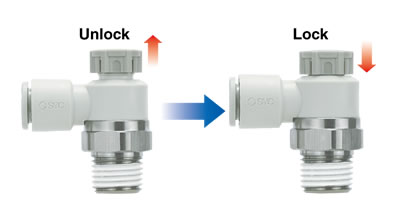

    Push-lock type Easy to lock

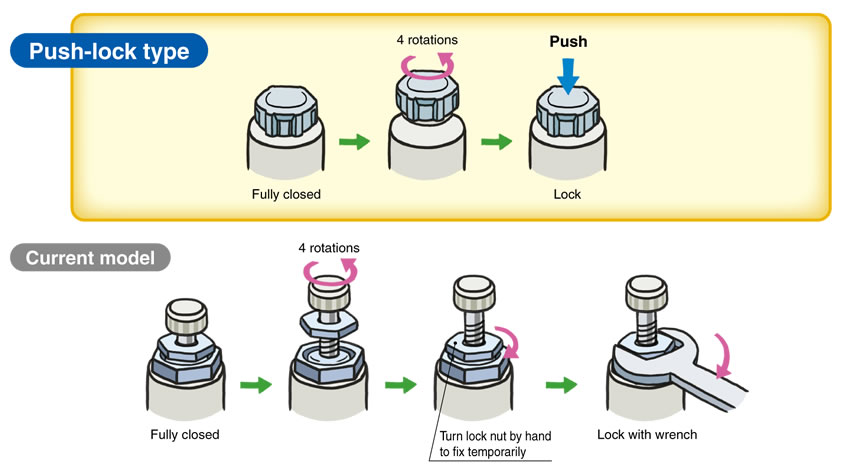

    ■Easy tool-less one push-lock

    ■Larger handle

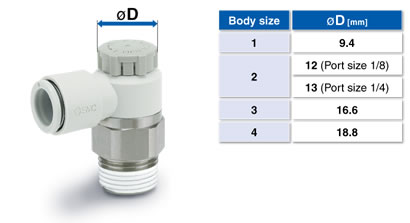

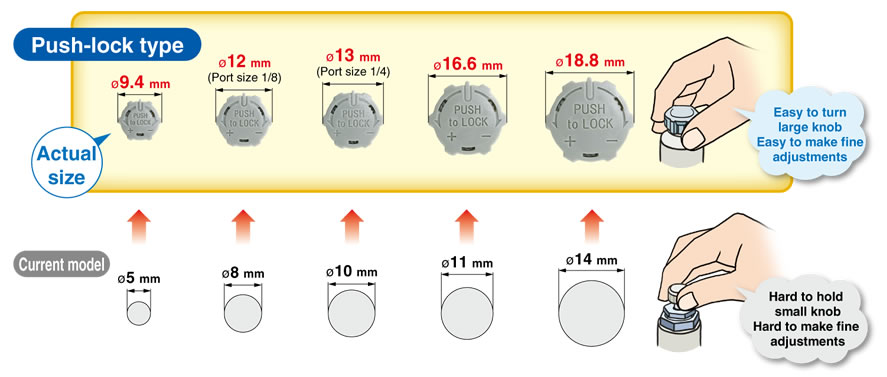

    ■Easy to turn large knob

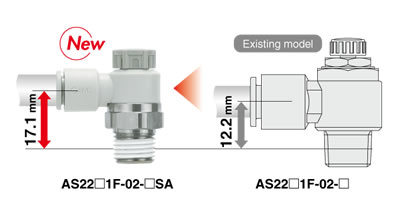

    ■Improved tube insertion/removal

    More space beneath the tube.
    Easier installation/removal of the tube.

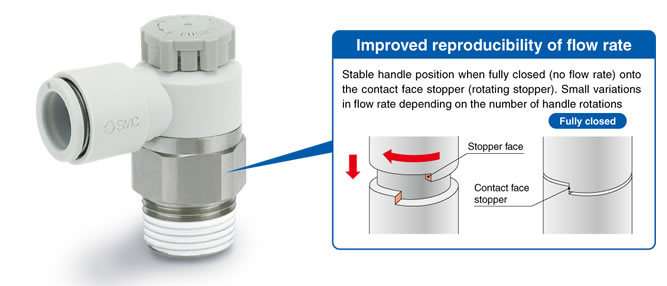

    ■Flow rate reproducibility

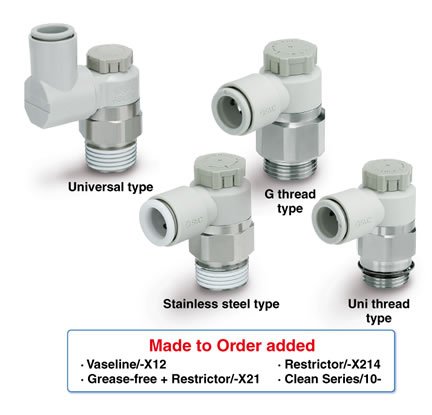

    ■New type added!

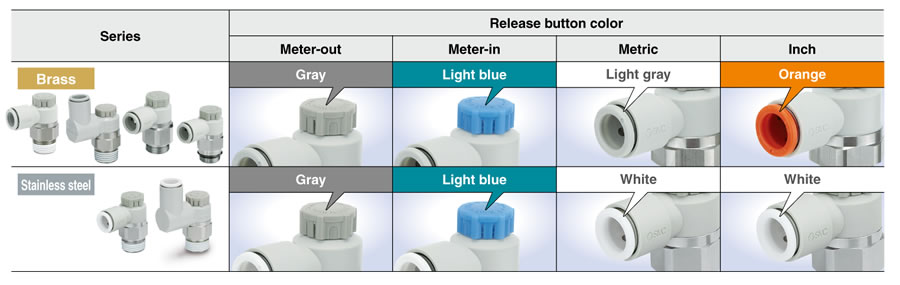

    ■Easy identification of product type

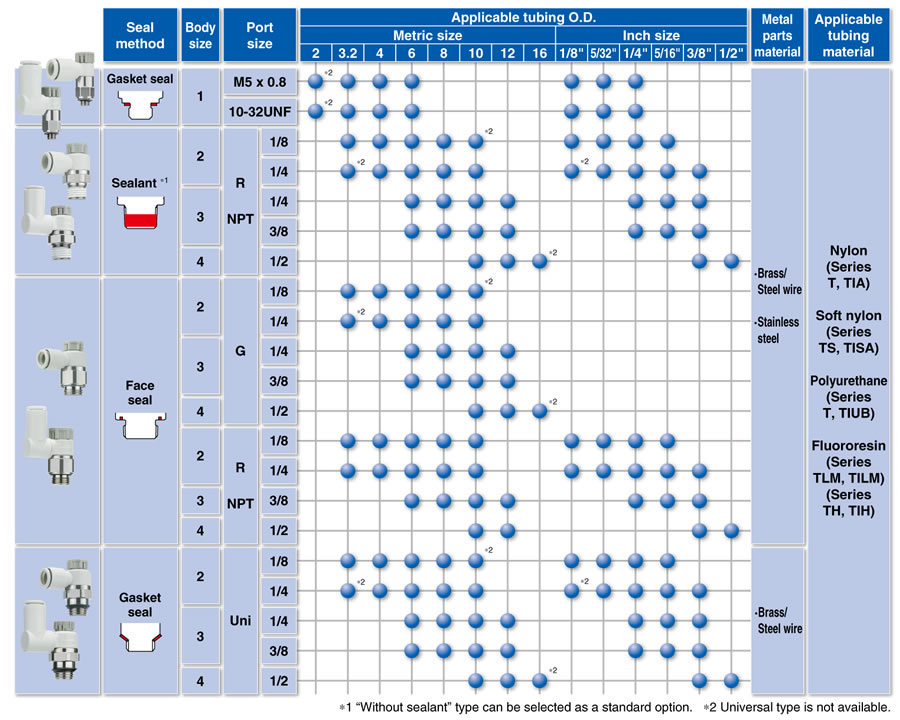

    ■Series Variations

    ■Electroless nickel plating type is standardized.
    ■Stainless steel type is standardized.
    ■G thread (face seal) is standardized.
  • Additional information

    Additional information

    Weight 1 kg
    Dimensions 300 × 300 × 300 cm
