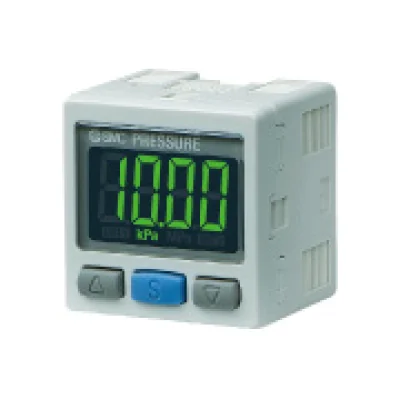

3-Screen Display High-Precision Digital Pressure Switch ZSE20(F)/ISE20

3-Screen Display High-Precision Digital Pressure Switch ZSE20(F)/ISE20

Rp6,250,000

・Visualization of settings
・Simple 3-step setting
・Easy screen switching
It is possible to change the settings while checking the measured value.
・Delay time:1.5 ms or less
・Current consumption: 25 mA or less
・IO-Link compatible


  • Description

    Description

    SeriesOutput typeTypeRated pressure rangeEnclosureApplicable fluid
    ZSE20(F)
    ISE20
    1 outputCompound pressure
    Vacuum pressure
    Positive pressure
    −100.0 to 100.0 kPa
    0.0 to −101.0 kPa
    −0.100 to 1.000 MPa
    IP40Air
    ZSE20A(F)
    ISE20A
    2 outputs
    Analog output
    (Voltage/Current)
    Compound pressure
    Vacuum pressure
    Positive pressure
    −100.0 to 100.0 kPa
    0.0 to −101.0 kPa
    −0.100 to 1.000 MPa
    IP40Air
    ZSE20B(F)-(L)
    ISE20B-(L)
    2 outputs
    Analog output
    (Voltage/Current)
    IO-Link/Switch: 1 output
    Compound pressure
    Vacuum pressure
    Positive pressure
    −100.0 to 100.0 kPa
    0.0 to −101.0 kPa
    −0.100 to 1.000 MPa
    IP65Air
    ZSE20C(F)-(L)
    ISE20C(H)-(L)
    2 outputs
    Analog output
    (Voltage/Current)
    IO-Link/Switch: 1 output
    Compound pressure
    Vacuum pressure
    Positive pressure
    −100.0 to 100.0 kPa
    0.0 to −101.0 kPa
    −0.100 to 1.000 MPa
    −0.100 to 2.000 MPa
    IP65General fluids

    Features

    Stainless diaphragm: Oil-free (Single-layer diaphragm structure)

    Sensor unit: Stainless steel 630, Fitting parts: Stainless steel 304

    Visualization of operation/equipment status/Remote monitoring and control by communication

  • Additional information

    Additional information

    Weight1 kg
    Dimensions200 × 200 × 200 cm
